Snap-Pak is a UL103HT listed chimney system that is designed for US installations of high-efficiency wood burning fireplaces and freestanding stoves. The innovative snap-lock tab design supports easy and secure installations. Its 403 stainless steel inner flue/outer casing combination and ceramic fiber blanket insulation will provide years of safe and reliable performance.

What's Included

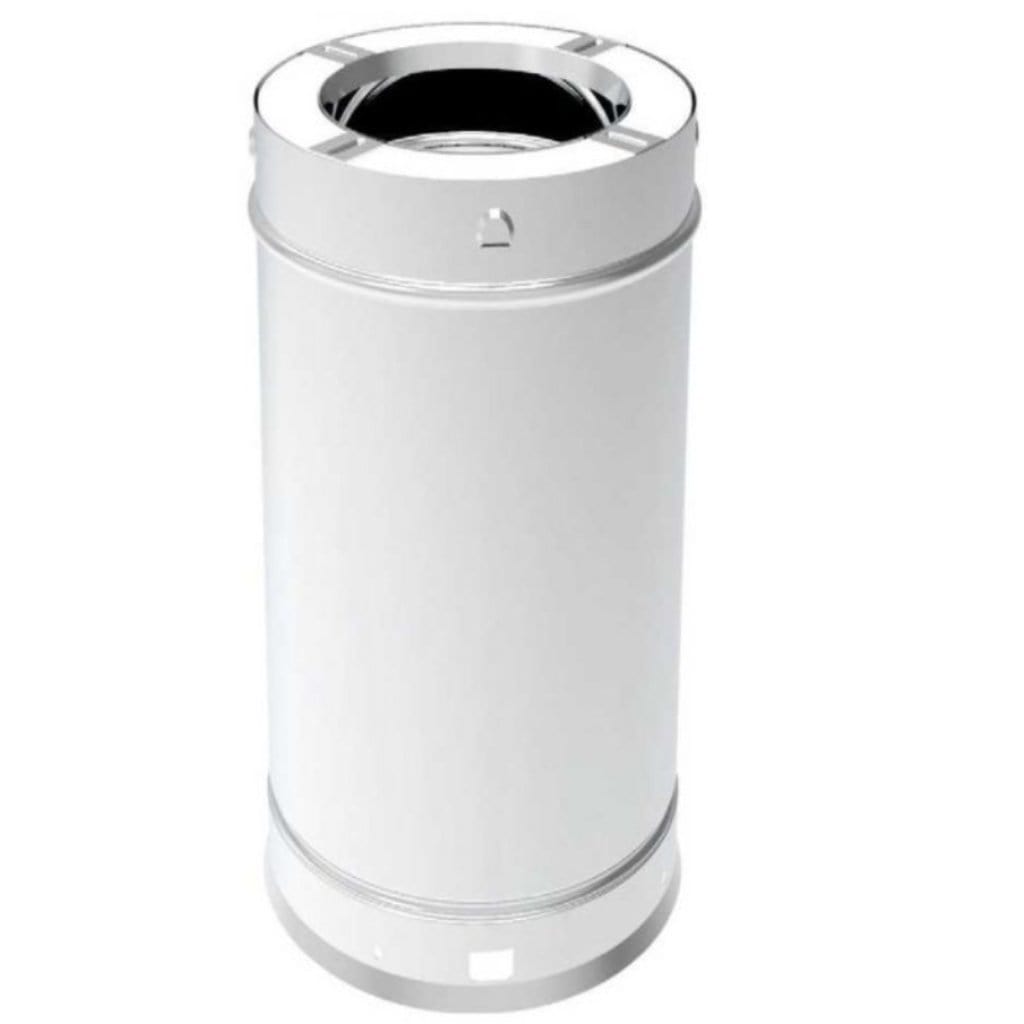

• 48" SS Chimney Length (1pk)

Features

•  6” diameter chimney system components and accessories
• Snap-Lock tab connection design for easy and secure connections
• UL 103HT / ULC-S629 listed—2100° intermittent, 1000° continuous use
• 430 stainless steel inner flue and outer casing
• Continuous laser welded flue and casing
• 1-1/2” ceramic fiber blanketed insulation
• 2” clearance to combustibles
• Limited lifetime warranty

Note: Pipe overlaps 1-1/2” when joined together, therefore assembled length is 1-1/2” less than listed length.

Specifications

Documents & Files

• Installation Manual
• Snap-Pak Smart Sheet
